There is a critical need for First Responders to have reliable emergency communications during life threatening events or natural disasters. Most local jurisdictions operate emergency radio networks to enable fire, police and EMS responders to communicate situations, coordinate responses and share general information. These emergency radio networks don’t always adequately provide coverage within buildings and following the tragedy of 9/11 building and fire codes have been updated to address the situation. As a result many new building require Public Safety Communication systems prior to building occupancy and Public Safety Communication systems are also being required in some areas for major renovations.

Emergency Responder Radio
Coverage Compliance Verification

Learn More

Do I need a Public Safety Communication System?

If the local emergency radio network meets the following criteria within your building there is a good chance your building does not require a Public Safety Communication System. Requirements vary based on the building’s location but check with the local fire department or Authority Having Jurisdiction (AHJ) to confirm your specific situation.

Are critical areas (99% coverage) and general areas (95% coverage) covered by the local emergency radio network?

In order for an area to be considered covered, the minimum signal strength of the local emergency radio network should be -95 dBm.

I might need a Public Safety Communication System. What do I need to know?

Each Public Safety Communication System has to meet a minimum set of requirements. Exact requirements vary based on local jurisdiction. Check your local building and fire codes for your specific requirements. Below are some general requirements commonly adopted across the U.S.

Minimum Signal Strength: According to the NFPA and IFC, minimum signal strength of -95 dBm is required to satisfy coverage.

Equipment Enclosures: The NFPA and IFC specify that all equipment supporting the public safety network must be housed in NEMA-4 compliant enclosures.

Backup Power Solution: Equipment that supports the public safety network must be able to function for 24 hours without the primary commercial power source.

Antenna isolation: The NFPA dictates that antenna isolation must be 15 dB higher or between donor and coverage antennas.

Fire Ratings: Cables connecting public safety network equipment must meet a two-hour fire rating. This also applies to the room that the equipment is housed in.

System Frequencies: The NFPA requires that if a radio enhancement system is necessary the system must be capable of supporting all relevant frequencies as provided by the local authority having jurisdiction.

System Components: Signal boosters including BDAs, shall have FCC type acceptance and must be operated in accordance with commission rules.

System Monitoring: An automatic-monitoring system is required to report antenna malfunctions, public safety network equipment failure, power loss and battery failure or low charge..

What are the different type of solutions?

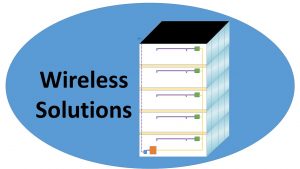

Wireless solutions exist for all sizes and types of buildings. From Pico cells which are ideal for small footprint applications where enhancement is only needed for a single carrier all the way to neutral host active DAS solutions frequently used in large venues enhancing service for multiple network operators.


What technologies and frequencies do I need?

The local authority can help you determine the exact frequencies and technologies. As a part of our service, Pierson Wireless can help engage your local authority and to determine exact frequencies and technologies. Pierson Wireless solutions support common Public Safety technologies such as Project 25 (P.25) and FirstNet. Frequencies supported include UHF/VHF/700/800 MHz and 900 MHz.

Pierson Wireless can design, install, monitor and support a Public Safety Communication System for your building. Our solutions provide reliable in-building public safety radio coverage that saves lives. Our solutions meet NFPA, ICC and local building code compliance requirements. Our solutions are capable of supporting all frequencies and public safety radio technologies. For more information on our Public Safety design and installation packages Click here. For more information on monitoring and support services Click here.
